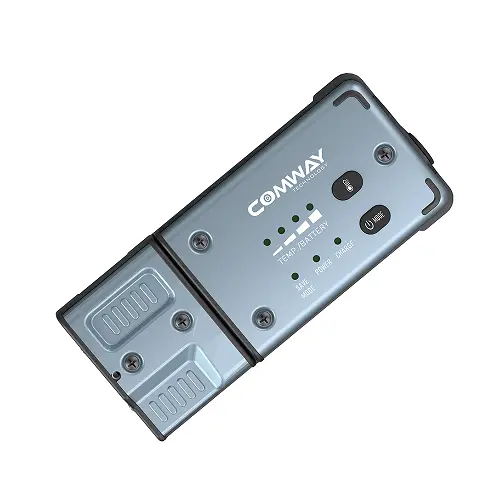

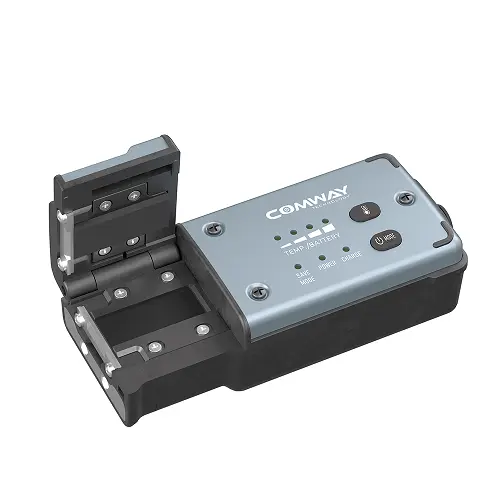

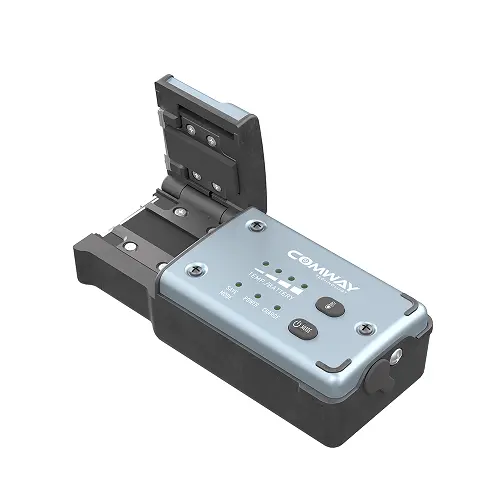

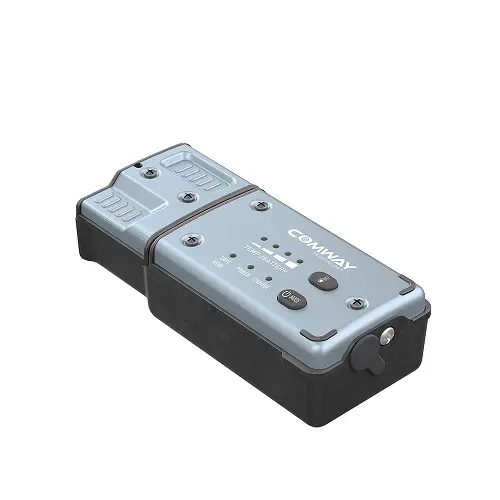

Comway CS-06 Fiber Optic Thermal Stripper
- Model#
- CS-06
- Brand
- Comway
- Category
- FTTX Product
- Sub Category
- Fiber Stripper
- Warranty
- Not Available
- Service
- 1 Year
* বর্তমানে আইটি পণ্যের দাম স্থিতিশীল না থাকায়, ওয়েবসাইটে দেয়া পণ্যের মূল্য বাড়তে পারে। *
How To Order: Over Phone, Email or Checkout in website, We Will Contact You Soon.
Description
1. Metal body.
2. Built-in lithium battery, which can
be charged using a mobile phone charger.
3. 4 kinds temperature choices, meeting a
variety of fiber stripping needs.
4. The widened blade can strip multiple
fibers at one time, improving work efficiency.
5. Prevent accidental startup
|
Model |
CS-06 |
|
ApplicableFiber |
Bundlefiber/Barefiber/Pigtail/Ribbonfiber/Invisiblefibere |
|
Numberofstrippedfiber |
Bundlefiber:1-12cores/Bare
fiber:1-36cores/ Pigtail fiber:1core Ribbonfiber: 2-36cores/Invisiblefiber:1-12cores |
|
CladdingDiameter |
125µm |
|
CoatingDiameter |
200 x 400µm |
|
StrippingLength |
Upto30mm |
|
Power mode |
Normal Mode/ Power
SaveMode |
|
TemperatureSetting |
Approx.90°C/100°C/
110°C/140°C |
|
Heating Time |
Normal Mode:Approx.
4s/Power SaveMode:Approx.5s |
|
BatteryCapacity |
Lithiumionbattery7.4V
2000mAh |
|
Endurance |
Asinglefull charge
canbecontinuouslystrippedfor approx.660 |
|
Power Supply |
USB Type-C(5V·20V,Max.20\V) |
|
OperatingCondition |
Temperature:-10°C•
40°C/ Humidity:0%-95% |
|
Dimensions |
108Lx 48VIx32H(mm) |
|
Weight |
290g |
