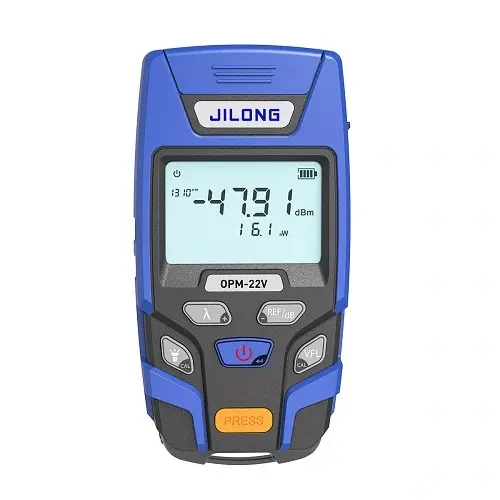

Jilong OPM-22V Mini Optical Power Meter
- Model#
- OPM-22V-C-L
- Brand
- Jilong
- Category
- Network Testing Tools
- Sub Category
- Optical Power Meter
- Warranty
- Not Available
- Service
- Not Available
* বর্তমানে আইটি পণ্যের দাম স্থিতিশীল না থাকায়, ওয়েবসাইটে দেয়া পণ্যের মূল্য বাড়তে পারে। *
How To Order: Over Phone, Email or Checkout in website, We Will Contact You Soon.
Description
Jilong
OPM-22V Mini Optical Power Meter – Compact, Accurate & Versatile
Enhance
your fiber optic testing efficiency with the Jilong
OPM-22V Mini Optical Power Meter. Designed for professionals,
this high-precision tool measures optical power with ±0.2 dB
accuracy across multiple wavelengths.
Core features
·
Pocket
size
·
Accurate
measurement ±0.2 dB
·
With
LED lights for dark environment
·
VFL
with 10mW (Only for OPM-22V)
·
Universal
adaptor for FC/SC/ST
·
Network
test, judge signal transmission
·
Continuous
use 60h (only in optical power meter mode)
·
Lithium
battery USB-charging/AA Batteries (optional)
·
Automatic
wavelength memory,7 wavelengths 850/980/1310/1490/1550/1625nm
Technical Specification
|
Model |
OPM-22 |
OPM-22V Multi-function
all-in-one machine |
|
VFL |
-- |
10mw |
|
Network test |
Inter face RJ-45 |
|
|
Wavelength |
800 ~ 1700 (nm) |
|
|
Detect or type |
InGaAs |
|
|
Connec tor |
2.5mm Universal connector |
|
|
Power
measurement range |
-50 ~ +26 dBm |
|
|
Measuement accuracy |
±0.2dB |
|
|
Standard wavelength |
850/ 980/ 1300/ 1310/ 1490/
1550/ 1625 (nm) |
|
|
Display resolution |
0.01dB |
|
|
Operating temperature |
-10 ~ +60℃ |
|
|
Storage temperature |
-25 ~ +70℃ |
|
|
Auto-off time |
10 min |
|
|
Operating hours |
Battery power : 20 hours
(only the optical power meter works) |
|
|
Rechargeable: 60 hours
(only the optical power meter works) |
||
|
LED |
Support |
|
|
Power |
AAA 1.5V batteries x 2 |
|
|
Dimensions |
112 x 57 x 31 mm |
|
|
Weight |
120 g (Including batteries) |
|
